Expose rank as a writable field in no-code automations

[RonMakesSystems]

Maybe just when holding Option?

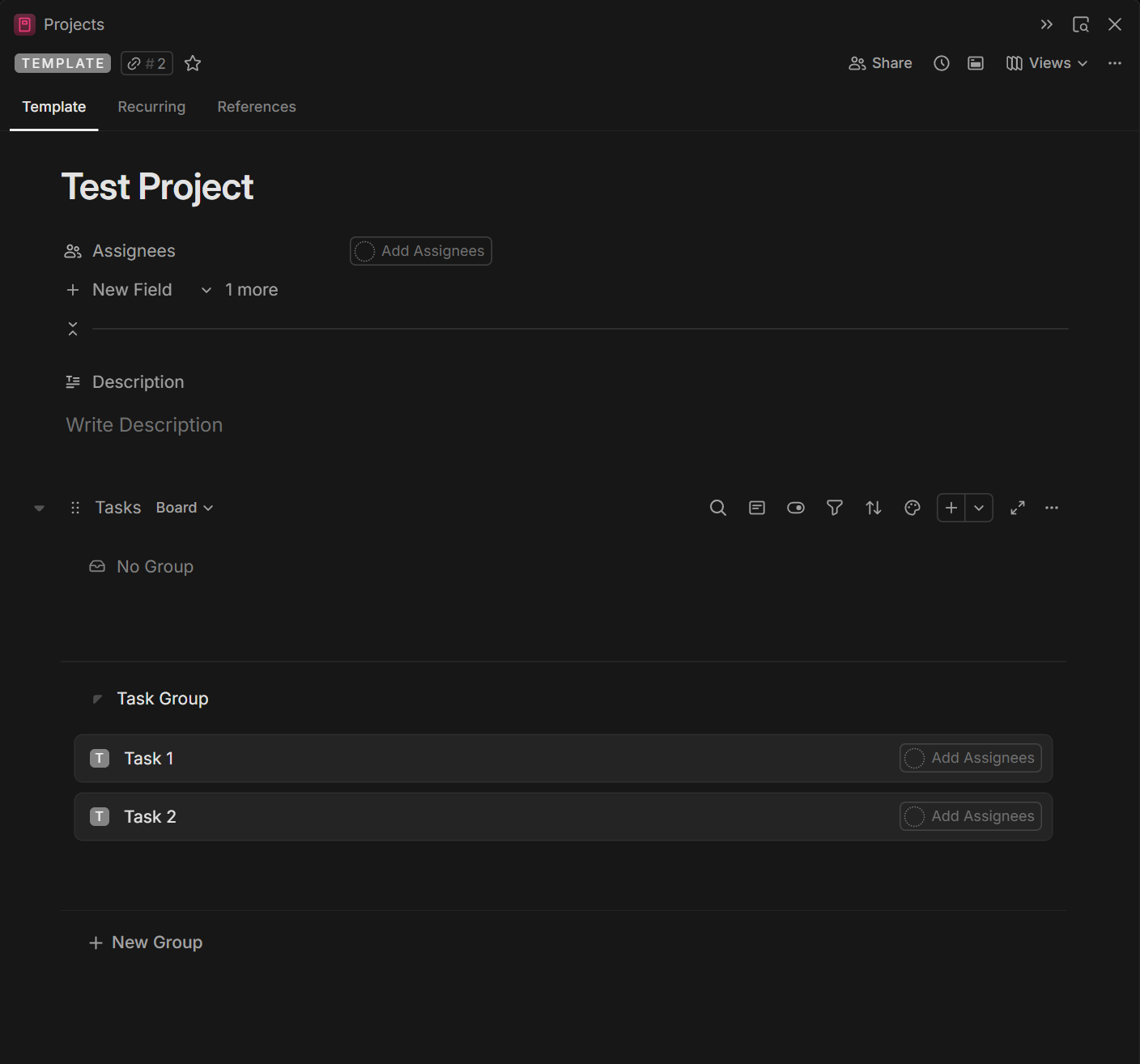

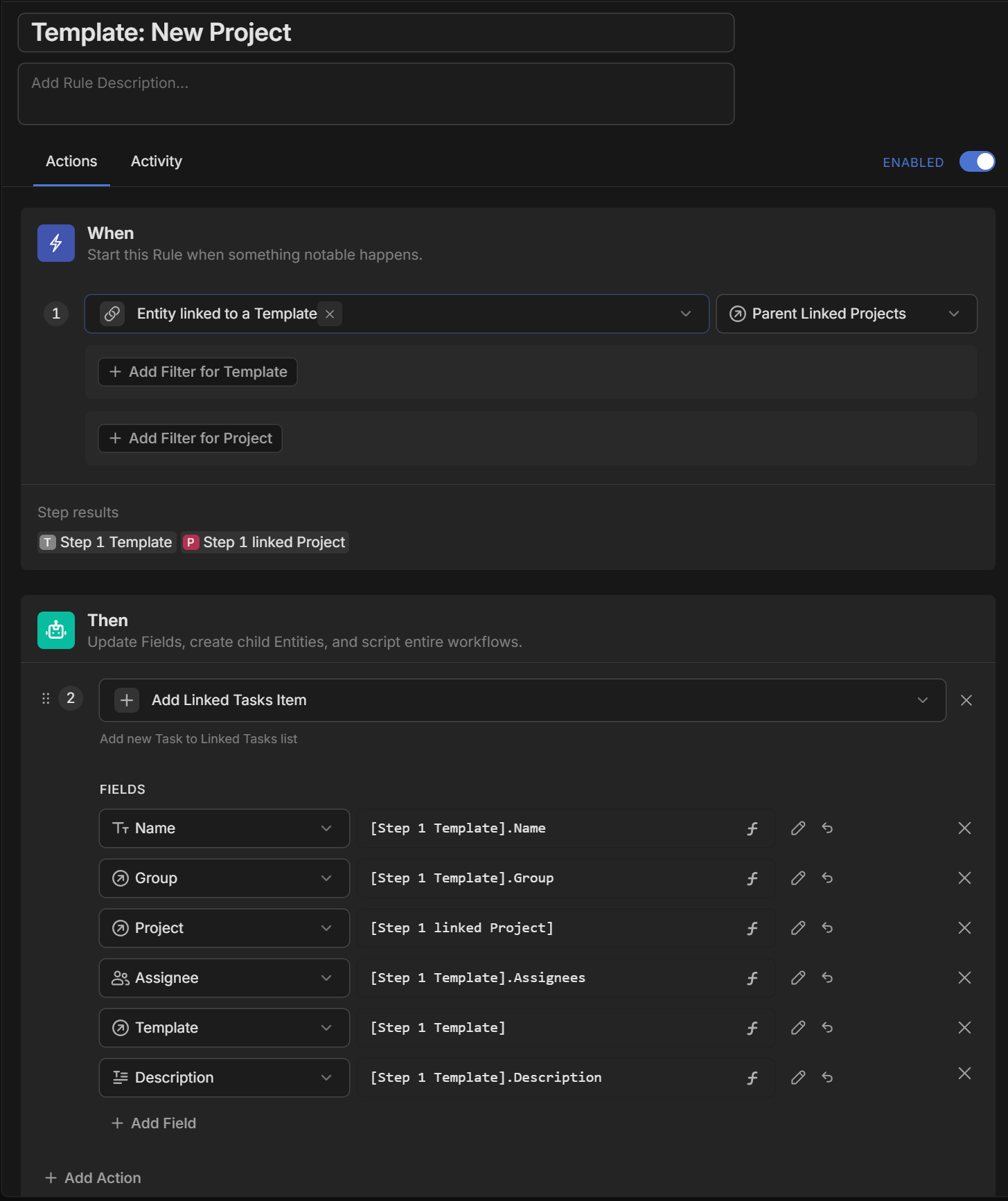

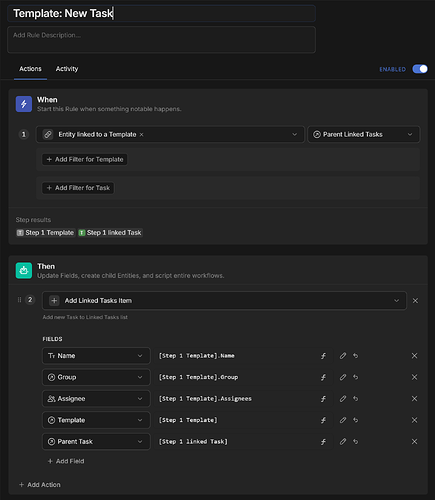

Im trying to template using lookups and triggering on link, but for some reason its not creating them in the rank as it is in the template… its creating it by creation date.

I have no idea why it does it this way, maybe in the way it sorts the lookup under the hood?

This would be easily solvable if I could just set the rank to equal the rank from the template.

[Chr1sG]

If multiple entities are linked simultaneously, the execution order for automations (triggered based on the entity linked to trigger) is not deterministic, so I don’t think you should expect the rank order of the link items to be taken into account.

If you need determinism, then you probably need to add an ‘order’ field, on which the items can be sorted, and ensure this field value is transferred to the created entities.

There is no chance (or maybe 0.001% chance) that rank will become an editable field I’m afraid.

[RonMakesSystems]

@Chr1sG

is not deterministic

What do you mean here? I don’t understand. Its just random? It seems to be maintaining the order of the creation date, so it doesn’t seem to be random… but im not sure.

@Chr1sG

There is no chance (or maybe 0.001% chance) that rank will become an editable field I’m afraid.

Unfortunate! It’s exposed in scripting. Even maybe as a hidden field just exposed when holding option? It would really help :))

[Chr1sG]

@RonMakesSystems

What do you mean here?

I mean that the order is not specified/guaranteed, and cannot be controlled/enforced.

[Matt_Blais]

@RonMakesSystems

This would be easily solvable if I could just set the rank to equal the rank from the template.

You should be able to do that in javascript.

[RonMakesSystems]

True, but I’m reluctant to reach for scripting as its more fragile than the no code automations. If naming changes, the script breaks. I’ll try playing around with it and see if I get it work in non-fragile way. Maybe getting the names from the inputted entity rather than hard coding them. Will share findings here.

[Chr1sG]

@Matt_Blais

@RonMakesSystems

This would be easily solvable if I could just set the rank to equal the rank from the template.

You should be able to do that in javascript.

Even though it’s possible to set the rank number via scripting, it’s not recommended, and it wouldn’t be wise to create entities to have the same values as existing entities.

[RonMakesSystems]

What about if it’s set to the rank of the other one, plus 1.or plus 100? Then it’s not the exact same but maintains the same order.

But then all tasks created with this template will have the same rank…

What if it was the rank of the other one, plus the public ID of the project it created, times 100. This way each one is unique, but maintains order within the project.

[Chr1sG]

@RonMakesSystems

What if it was the rank of the other one, plus the public ID of the project it created, times 100

Public Ids are text type

But I suppose you could convert text to number.

I’m not going to recommend any particular method involving rank, because I don’t know the consequences.

I’d simply suggest using a dedicated ‘Order’ field instead.

Note: it is possible to use a formula field to get the relative position of a child entity in a collection:

(Find(
  [Project].Task.Sort().Join("#" + Right("000" + [Public Id], 4), ""),
  "#" + Right("000" + [Public Id], 4)
) +
  4) /
  5

See here:

Formula to assign number based on sorting

Hi everyone Not sure if this is a help request or a formula function request: Is there an elegant way to number up entities in a formula field based on a sorting? If this is not possible, I’d like to request a position() function, which returns the position of an entity within a collection based on a sorting. E.g.: Projects can have tasks assigned, each of which have a start date. If a project has 4 tasks assigned, I would want an auxiliary (formula) field showing 1-4, depen…

[RonMakesSystems]

(posted before you edited your post above)

Never understood why this is.

Do you see any possible solution to this? I really don’t want to go the route of a manual sort field… It makes it clunky to resort things. Not ideal.

It consistently creates in the “created date” order. So some thing there (I feel like) is consistent…

Usually you come up with the craziest ideas haha.

Is my situation clear in what I’m try to get at? It’s hard to call it a “template” if it doesn’t copy the sort order. And right now this is the most clean and robust way to make templates in Fibery.

(after your edit)
Okay makes sense. I’ll try some things and see what happens haha

[RonMakesSystems]

Scripting works. Doesn’t cause any issues (that i could find) with having the same rank in multiple places, just puts things next to each other in the views, and recalculates automatically when dragged. This is the cleanest solution for the end user.

Down side is the fragility of scripting. Changes in naming fields, space, or database will cause the script to break so i try to avoid scripting when I can. Hence, keeping this feature request open.

Another down side is the fact that newly created tasks don’t go the bottom, instead they are in the middle of everything. I didn’t implement the calculation based on the project id. This could solve it, but I’m more worried this would break things. If the number is too small or something? Could give it a shot and see what happens haha

Got it to work! But its making rank number a lot smaller than usual, so far it doesn’t seem to be a problem! Here’s the script:

// Developer reference is at https://the.fibery.io/@public/User_Guide/Guide/Scripts-in-Automations-54

// Fibery API is used to retrieve and update entities
const fibery = context.getService('fibery');

// affected entities are stored in args.currentEntities;
// to support batch actions they always come in an array
for (const entity of args.currentEntities) {
    // an entity contains all fields apart from collections;
    // to access a field refer to it by its UI name
    const taskTemplateId = entity['Task Template']["Id"];
    const taskTemplate = await fibery.getEntityById('Project Management/Task Template', taskTemplateId, ['Order', 'Type 1']);
    const taskTemplateRank = taskTemplate['Order'];

    const project = await fibery.getEntityById('Project Management/Project', entity['Project']['Id'], ['Public Id']);

    const projectId = project['Public Id'];
    console.log(taskTemplateRank);
    console.log(projectId);

    const newRank = Number(projectId + String(taskTemplateRank))*1000;
    console.log(newRank)
    // to update an entity provide an object with the new values
    await fibery.updateEntity(entity.type, entity.id, {
        'rank': newRank,
    });
}

The down side is that after a certain number of moves it needs to reorder all the cards and assign new ranks. Not sure how long this would take is the database is very large… Could just make the *1000 into *1000000 to accommodate more moves. but still at some point it’ll need to rerank.

Updated:

// Developer reference is at https://the.fibery.io/@public/User_Guide/Guide/Scripts-in-Automations-54

// Fibery API is used to retrieve and update entities
const fibery = context.getService('fibery');

// affected entities are stored in args.currentEntities;
// to support batch actions they always come in an array
for (const entity of args.currentEntities) {
    // an entity contains all fields apart from collections;
    // to access a field refer to it by its UI name
    const taskTemplateId = entity['Task Template']["Id"];
    const taskTemplate = await fibery.getEntityById('Project Management/Task Template', taskTemplateId, ['Order', 'Type 1']);
    const taskTemplateRank = taskTemplate['Order'];

    const project = await fibery.getEntityById('Project Management/Project', entity['Project']['Id'], ['Public Id']);

    const projectId = project['Public Id'];
    console.log(taskTemplateRank);
    console.log(projectId);

    const newRank = Number((projectId + String(taskTemplateRank * 1000000000000000)).substring(0, 15));
    // to update an entity provide an object with the new values
    await fibery.updateEntity(entity.type, entity.id, {
        'rank': newRank,
    });
}

Edit: the problem with the above is that a ranking of 10 and of 1 will look the same. working script below:

// Developer reference is at https://the.fibery.io/@public/User_Guide/Guide/Scripts-in-Automations-54

// Fibery API is used to retrieve and update entities
const fibery = context.getService('fibery');

// affected entities are stored in args.currentEntities;
// to support batch actions they always come in an array
for (const entity of args.currentEntities) {
    // an entity contains all fields apart from collections;
    // to access a field refer to it by its UI name
    const stageTemplateId = entity['Stage']["Id"];
    const stageTemplate = await fibery.getEntityById('Projects/Stage', stageTemplateId, ['Order']);
    const stageTemplateOrder = stageTemplate['Order'];

    const project = await fibery.getEntityById('Projects/Project', entity['Project']['Id'], ['Public Id']);

    const projectId = project['Public Id'];

    const paddedOrder = String(stageTemplateOrder).padStart(3, '0');
    const newRank = Number((projectId + paddedOrder + '0'.repeat(12)).substring(0, 15));
    await fibery.updateEntity(entity.type, entity.id, {
        'rank': newRank,
    });
}

[danielbmarsh]

This is an issue for my client’s templates as well to.
Subtasks on projects need to come across in order because they are in order of the project’s workflow. However we cannot set a sort field because one off tasks are added and need to be ordered. It is too hard for some users to look up a value and set a sort value on a new task for it to sort appropriately. They need the ability to drag an drop the subtask in the order of all the other subtasks. The only way this happens is if the subtasks maintain the sort order of the template. If scripting is there is no solution to this for the basic subscribers.
